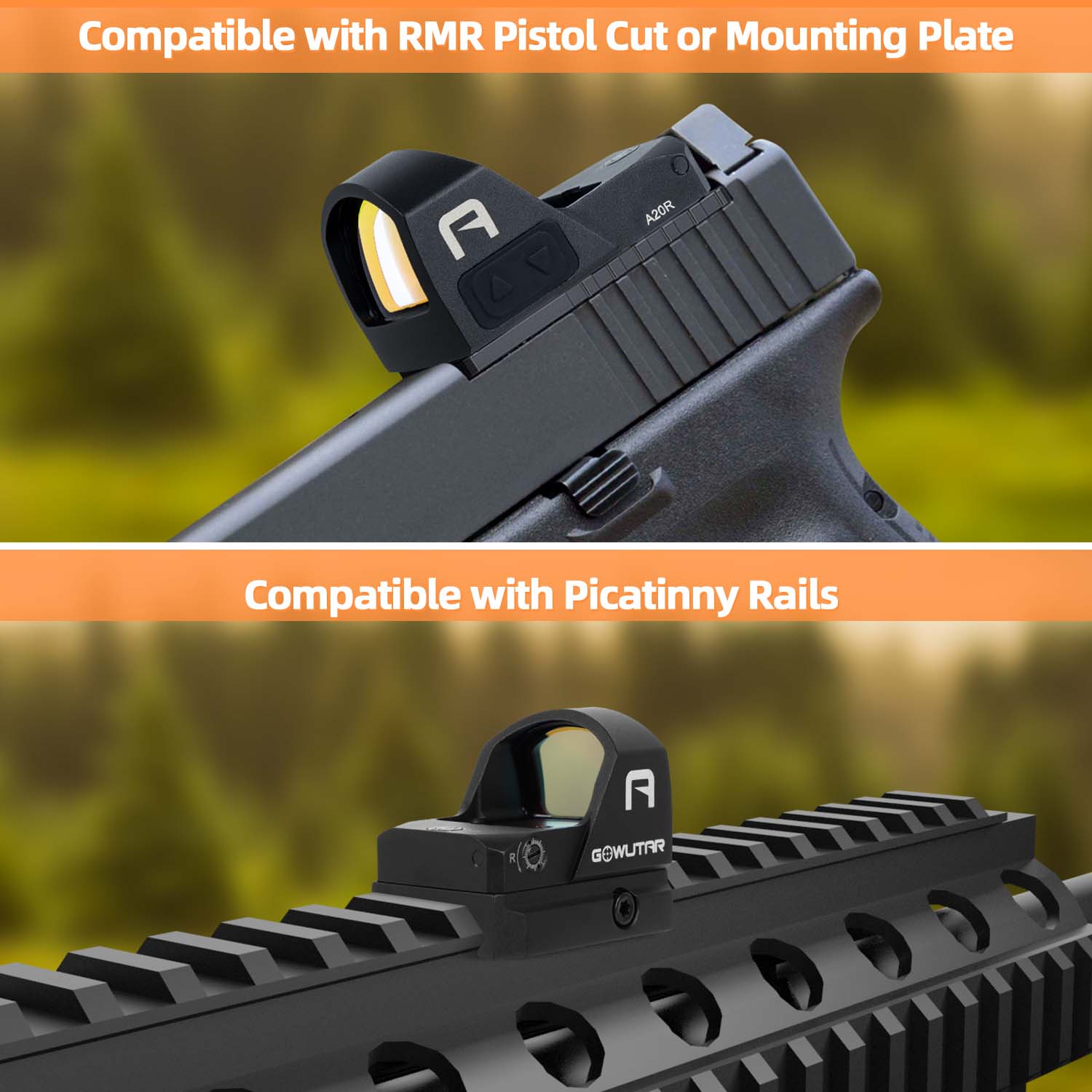

Industry Standard RMR/SRO Footprint & 1913 Picatinny Base
A20 red dot sight is compatible with RMR/SRO cut slide or mounting plate, suits for most pistols and handguns (The same base as Trijicon RMR/SRO, Holosun 407C/507C/508T).
In addition, a low-profile Picatinny mount is included to be mounted on shotguns, rifles or anything that uses a Picatinny rail interface.
Note: NOT fit for Doctor footprint pistols or RMSc footprint ultra-compact pistol models such as glock 43x/48 mos.

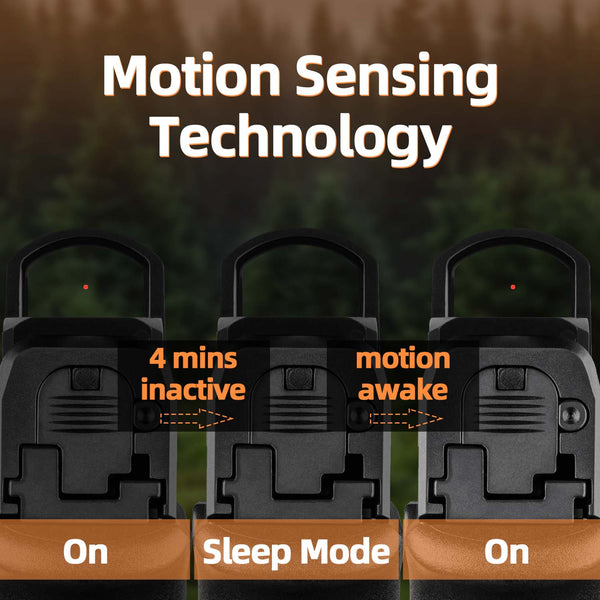

Shake Awake Technology
The RMR sight integrates with motion sensing illumination tech to help save battery life, a CR1632 battery can be used for up to 50,000 hours. After 4 minutes without motion, illumination shuts off; even the smallest tap or tilt will wake it up to the previous brightness setting.
Note: You need to activate the function by turn on the sight manually, and the function will turn off accordingly after turn off the sight manually.
Why Choose the A20 RMR Red Dot Sight?
■ Constructes from aviation-grade 7075 aluminum, 1800Gs shockproof, IPX8 waterproof and anti-rust for use in rugged conditions.
■ Shake Awake technology (240s Auto off without motion & Auto on even with small motion).
■ Easy return to zero and hold zero without fail (passed 1000 Rounds without losing it).
■ 2 MOA red dot reticle is crisp and very clear on the brightest days.
■ 1 MOA per click Windage and Elevation adjustment, you will hear crisp sound.
■ 10 illumination settings (8 daylight plus 2 NV) for visibility in all light conditions.
■ LED emiter is 100% waterproof, can be used in the rain and even more aggresive water situations.
■ 24mm lens provides wide field of view allowing for fast target acquisition, the open design allows the shooter to stay aware of the surroundings.

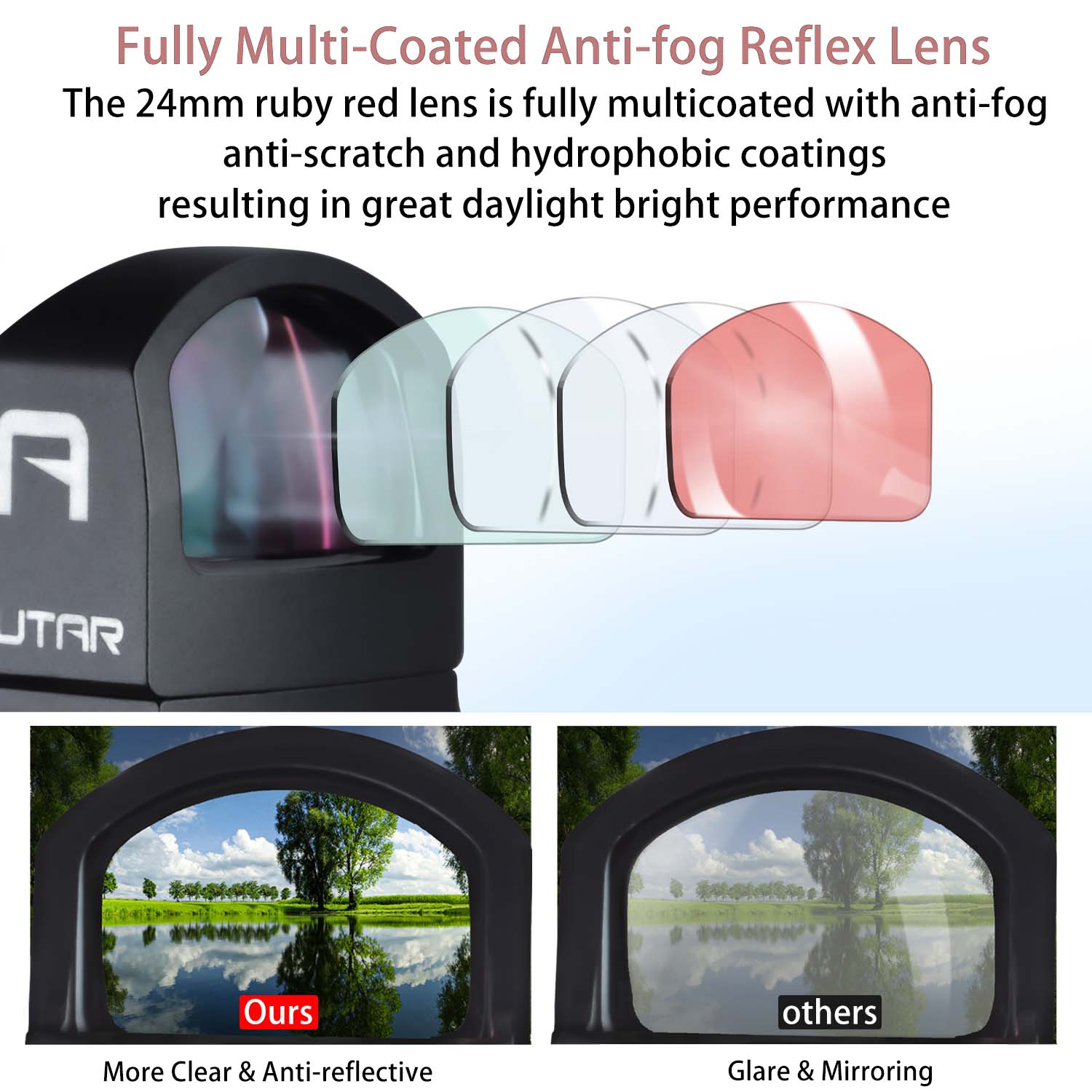

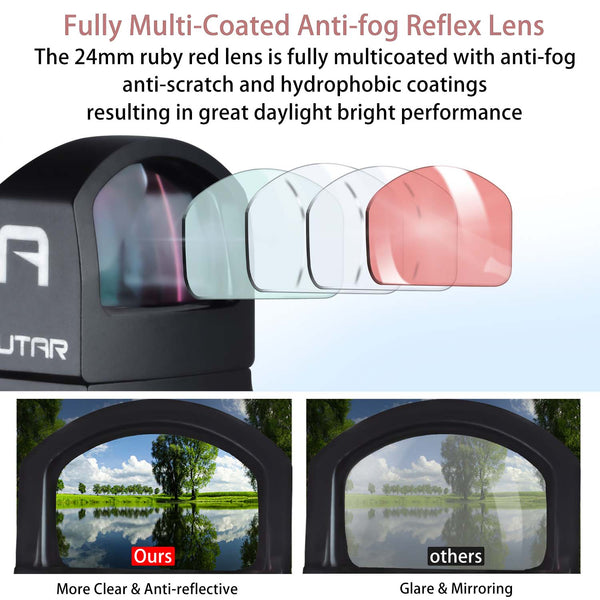

■ Optical glass with multilayer coatings applied to facilitate maximum light transmission and wear resistance while reducing glare.

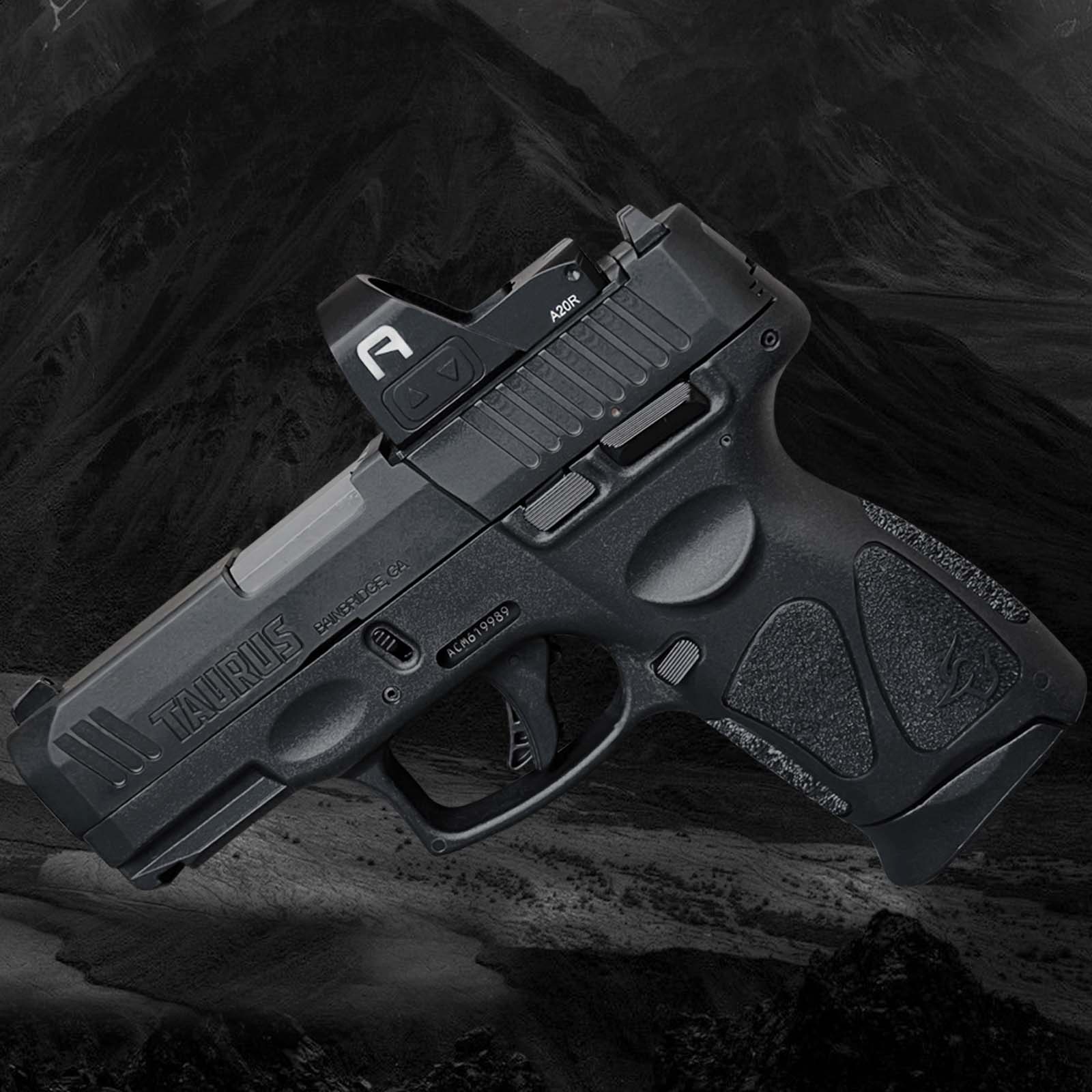

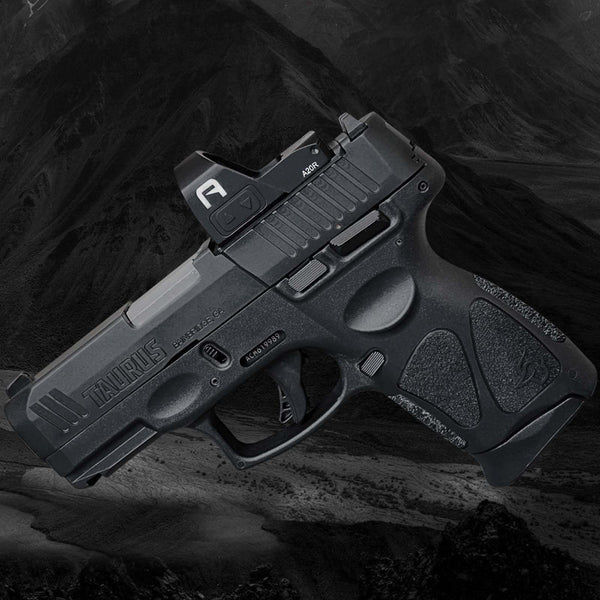

Handgun Mounted
45° Offset Optic Mounted
Picatinny Rail Mounted （Shotgun & Rifle）
Specifications
- Dot Size: 2 MOA
- Dot Color: Red
- Objective Lens Diameter: 24 Millimeters
- Magnification: 1x
- Body Material: 7075 aircraft grade Aluminum
- Lens color: Fully Multi-Coated Ruby Red
- Click Value: 1 MOA per click
- Windage/Elevation Movement Range: ±45 MOA
- 10 Illumination Settings: 8 Daytime/2 NV
- Shockproof: 1800Gs
- Waterproof: IPX8
- Battery Type: CR1632
- Battery Life: 160h-50000h
- Net weight: 41g/1.45oz
- Length: 43mm/1.69in
- Width: 29mm/1.14in
- Height: 27mm/1.06in

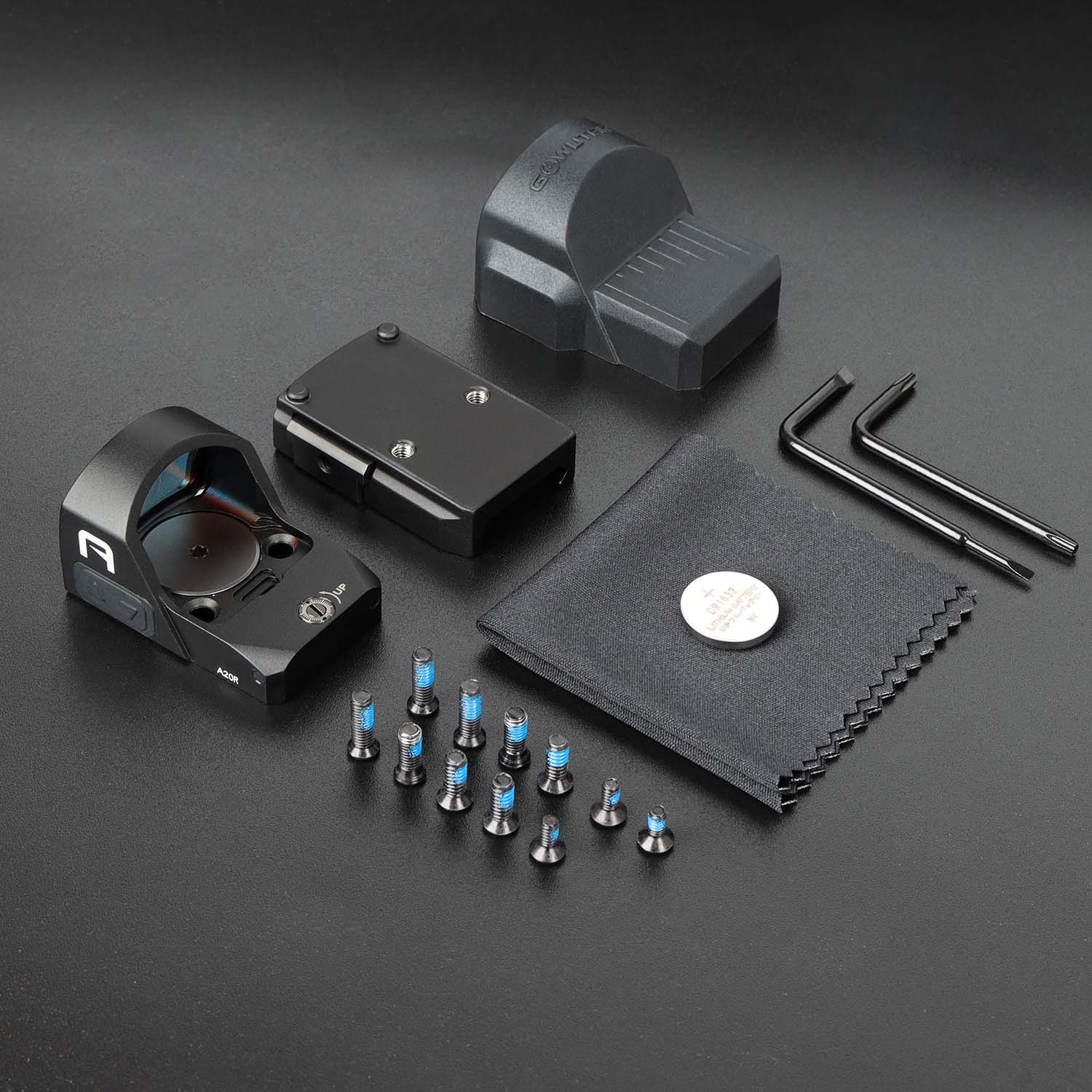

Package Includes
- 1 x 2MOA Micro Red Dot Sight
- 1 x CR1632 Battery
- 1 x Picatinny Mount
- 1 x Cleaning Cloth
- 2 x Mini Wrenches
- 1 x Screw sets
- 1 x Packing Box

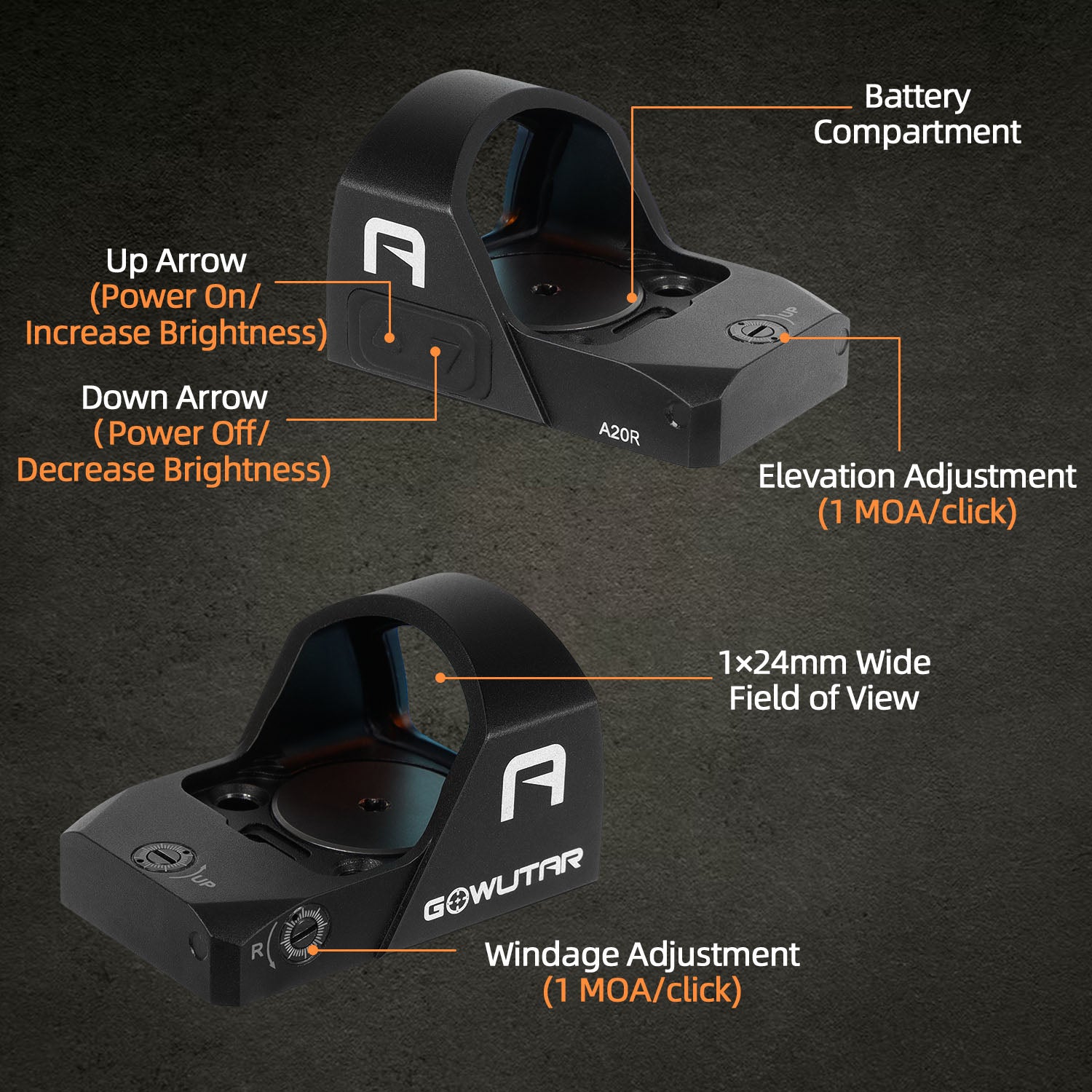

Press “UP" arrow to power on, hold “DOWN" arrow for 3 seconds to power off.
Note: If you see a splashed dot, please take a picture of the dot with your phone. If you see a perfect dot in the picture, then the dot is normal. (because phones are machines that do not have human astigmatism).

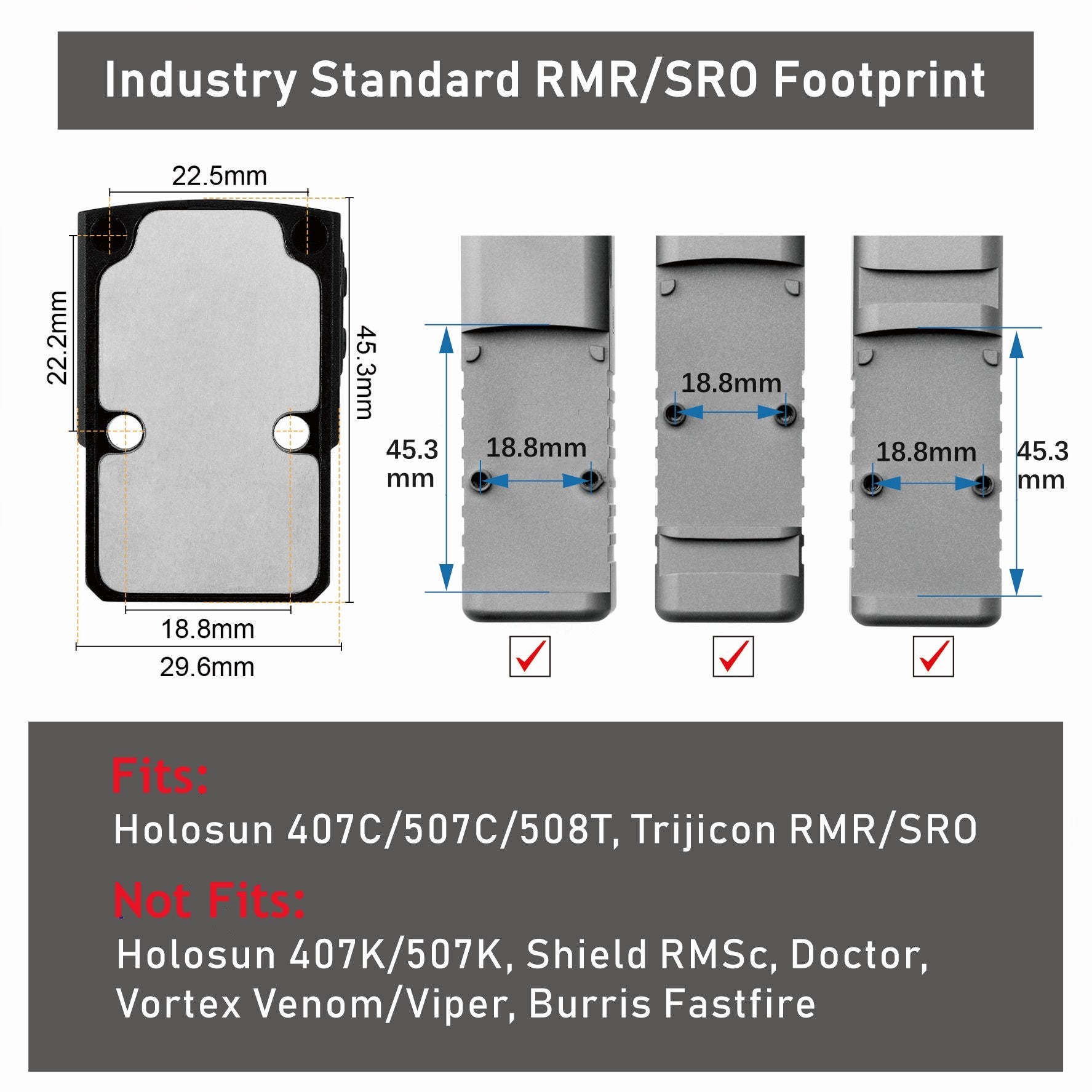

Bottom View of the sight
Compatible footprint for RMR pistol cut/slide/mounting plate, check if the base size fits your pistol or not.
Rugged Aluminum Construction
Tough and durable design, hold up to various types of recoils.It withstands waterproof test, dropping test and low temperature test, can be used in rugged environment.
