Industry Standard RMR/SRO Footprint & 1913 Picatinny Base.
A20C multi-reticle red dot sight is compatible with RMR cut slide or mounting plate, suitable for most optic-ready pistols and handguns (The same base as Trijicon RMR/SRO & Holosun 407C/507C/508T).
In addition, a low-profile Picatinny mount is included to be mounted on shotguns, rifles or anything that uses a Picatinny rail interface.
3 different reticle styles: Dot, Circle, Circle/Dot
Dot size is 2MOA, circle size is 38MOA. No longer restricted to one reticle, shooters can now select from three versatile options suitable for multiple shooting scenarios!
(Hold "UP" arrow button for 3 seconds to switch the reticle styles)
Shake Awake Technology
Red circle dot sight integrates with Shake Awake motion sensing illumination tech to help save battery life, a CR1632 battery can be used for up to 50,000 hours. After 4 minutes without motion, illumination shuts off, even the smallest tap or tilt will wake it up to the previous brightness setting.
Note: You need to activate the function by turn on the sight manually, and the function will turn off accordingly after turn off the sight manually.

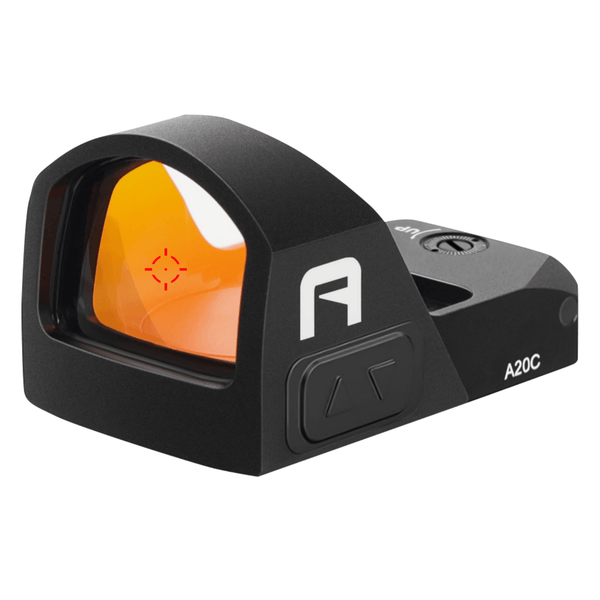

Highlights of A20C Multiple reticles Red Dot Sight
■ 3 different reticle styles can easily be changed at will based on the shooter’s preference for multiple shooting scenarios.
■ 50,000 hours of battery life w/ shake awake technology.
■ RMR footprint offers widest range of compatibility, allows the sight to be used on most factory optics ready pistols.
■ Ready to use on your rifle or shotgun with the included picatinny rail mount.
■ Easy to zero with 1 MOA per click & audible click sound when adjust elevation & windage.
■ Provides 10 illumination settings (8 daylight plus 2 NV) for visibility in all light conditions.
■ Windowless Waterproof LED Emitter technology, can be used in the rain and even more aggresive water situations.
■ 24mm large window ensures fast and accurate target acquisition, the open design allows the shooter to stay aware of the surroundings.
RMR Footprint Mounted
Picatinny Rail Mounted
Check if the base size fits for your pistol
Top-loading Battery
The top load system makes changing the CR1632 battery a breeze without removing the sight from the equipment retaining your zero.
Specifications
- Dot Size: 2 MOA
- Crosshair/Circle size: 38MOA
- Lens Diameter: 24 Millimeters
- Magnification: 1x
- Body Material: 6061 aircraft-grade Aluminum
- Lens color: Fully Multi-Coated Ruby Red
- Click Value: 1 MOA/click
- Windage/Elevation Movement Range: ±45 MOA
- 10 Illumination Settings: 8 Daytime/2 NV
- Shockproof: 1500Gs
- Waterproof: IPX7
- Battery Type: CR1632
- Battery Life: 160h-50000h
Press “UP" arrow to power on, hold “DOWN" arrow for 3 seconds to power off.
If you see a splashed dot, please take a picture of the dot with your phone. If the dot is perfectly showed in the picture, then the dot is normal and you may have astigmatism (because phones are machines that do not have human astigmatism).
-- Waterproof: it is IPX7 waterproof and stays dry even when immersed in water.
-- Shockproof: constructed from 6061 aluminum, shockproof up to incredible 1500Gs recoil impact.
-- Fogproof: this rmr red dot won't fog up due to rapid changes in humidity or temperature, you can always see the red dot and your target clearly.
-- Anti-reflection: fully multi-coated ruby red lens can provide clearer field of view than normal, useful in different conditions.
