-- Industry Standard RMS/RMSc Footprint & 1913 Picatinny Base

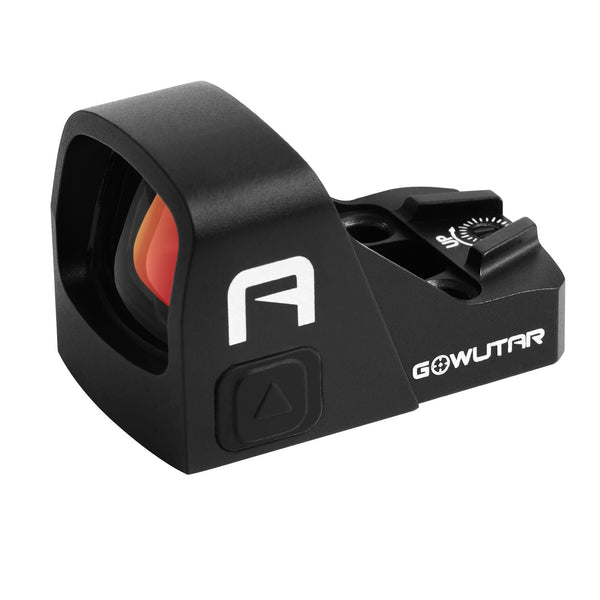

A17 micro red dot optic is designed for compact and sub-compact pistols, it is compatible with RMS/RMSc Footprint.

Suits for: Canik Mete SFX, Canik Mete SFT, Canik TP9 Elite SC, Glock 48 mos, Glock 43x mos, Sig Sauer P365XL/P365X, Sig Sauer P322, Springfield Armory Hellcat OSP, Ruger Max9, Kimber R7 Mako, WALTHER PPS M2 RMSc, WALTHER Q4/Q5, Smith&Wesson Shield Plus 9mm, S&W PC M&P Shield M2.0, S&W MP9 EZ, Taurus GX4 Toro, Taurus TX22 compact, etc..

In addition, a low-profile Picatinny mount is included to be mounted on shotguns, rifles or anything that uses a Picatinny rail interface.

-- Shake Awake Design

The rmsc pistol sight features an automatic timeout and motion sensitive “shake to awake” feature. If the optics not bumped or moved for 240 seconds, the dot will turn off automatically to extend battery life. When the optic is bumped or moved, the dot will rapidly auto power on.

Note: You need to activate the function by turn on the sight manually, and the function will turn off accordingly after turn off the sight manually.

Why Choose the A17 Micro Red Dot Sight?

■ Constructes from aviation-grade 7075 aluminum, 1800Gs shockproof, IPX8 waterproof and anti-rust for use in rugged conditions.
■ Shake Awake technology (240s Auto off without motion & Auto on even with small motion).
■ Back-up Iron Sight Design. It has an integrated co-witness sight to give you added certainty when taking aim.
■ Easy return to zero and hold zero without fail (passed 1000 Rounds without losing it).
■ 2 MOA red dot reticle is crisp and very clear on the brightest days.
■ LED emiter is 100% waterproof, can be used in the rain and even more aggresive water situations.
■ Optical glass with multilayer coatings applied to facilitate maximum light transmission and wear resistance while reducing glare.
■ 10 illumination settings (8 daylight plus 2 NV) for visibility in all light conditions.

Handgun Mounted

Picatinny Rail Mounted

45° Offset Optic Mounted

Specifications

• Dot Size: 2 MOA
• Dot Color: Red
• Lens Height: 17 Millimeters
• Magnification: 1x
• Body Material: 7075 aircraft grade Aluminum
• Lens color: Fully Multi-Coated Ruby Red
• Windage/Elevation Movement Range: ±45 MOA
• 10 Illumination Settings: 8 Daytime/2 NV

• Shockproof: 1800Gs
• Waterproof: IPX8
• Battery Type: CR2032
• Battery Life: 160h-30000h
• Net weight: 25g/0.88oz
• Length: 37mm/1.44in
• Width: 24mm/0.94in
• Height: 26mm/1.02in

Package Includes

Press “UP" arrow to power on, hold “DOWN" arrow for 3 seconds to power off.

Note: If you see a splashed dot, please take a picture of the dot with your phone. If you see a perfect dot in the picture, then the dot is normal and you may have astigmatism (because phones are machines that do not have human astigmatism).

With Low-Profile Picatinny Rail Mount

-- Detachable low rail mount is compatible with all 0.8"/20mm rail, easy install with weaver or picatinny.

-- Waterproof: o-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments. It is IPX8 waterproof and stays dry even when immersed in water.

-- Shockproof: constructed from 7075 aluminum, hard coated in matte black. shockproof up to incredible 1800Gs recoil impact.

-- Fogproof: this red dot won't fog up due to rapid changes in humidity or temperature, you can always see the red dot and your target clearly.

-- Anti-reflection: fully multi-coated ruby red lens can provide clearer field of view than normal, useful in different conditions.
